LM5000SD-3/NOPB
Manufacturer:
Texas Instruments
Mfr.Part #:
LM5000SD-3/NOPB
Datasheet:
Description:

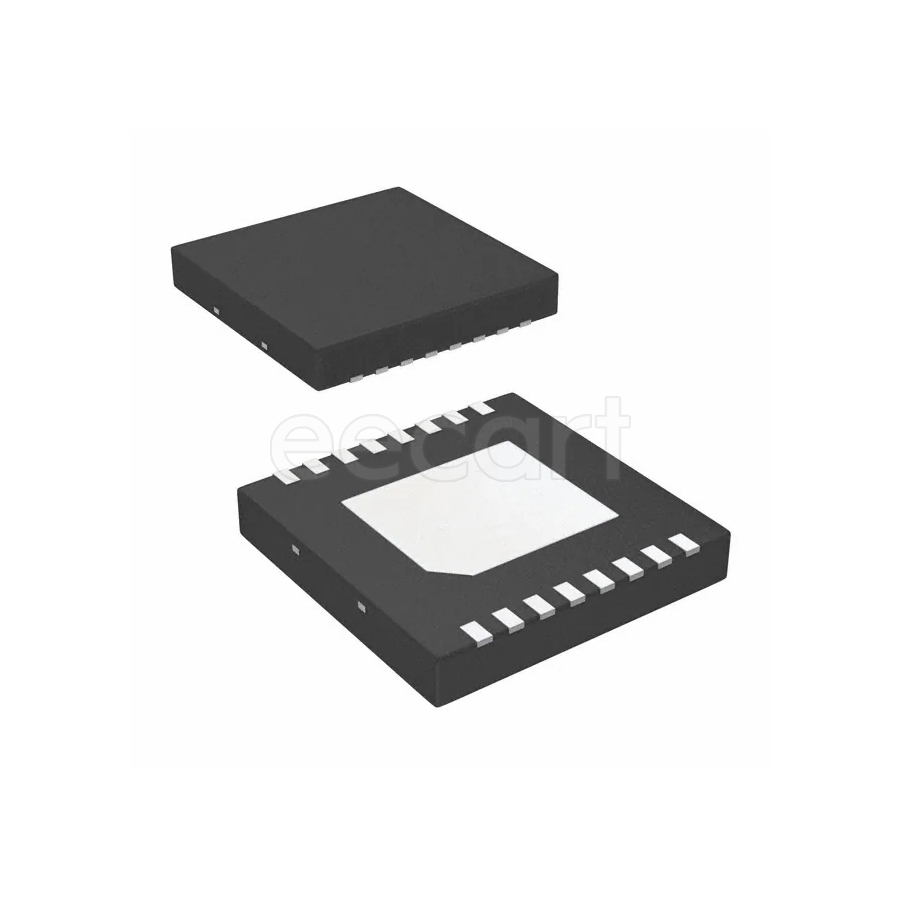

Voltage Regulators - Switching WSON-16 SMD/SMT Boost, Flyback Adjustable, Fixed 1.259 V
| Parameter | Value |
|---|---|
| Length | 5 mm |
| Width | 5 mm |
| Termination | SMD/SMT |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 16 |
| Height | 800 µm |
| Thickness | 0.8 mm |
| Radiation Hardening | No |
| REACH SVHC | No SVHC |
| Contact Plating | Tin |
| Frequency | 700 kHz |
| Min Input Voltage | 3.1 V |
| Output Current | 2 A |
| Output Voltage | 1.259 V |
| Output Type | Adjustable, Fixed |
| Lifecycle Status | Active |
| Max Supply Voltage | 40 V |
| Min Supply Voltage | 3.1 V |
| Max Output Current | 2.7 A |
| Quiescent Current | 2.1 mA |
| Synchronous Rectifier | No |
| Topology | Boost, Flyback |
| Switching Frequency | 1.25 MHz |
| Max Input Voltage | 40 V |
| Number of Outputs | 1 |
| Nominal Supply Current | 2.1 mA |
| Efficiency | 90 % |
| Min Output Voltage | 1.259 V |
| Max Output Voltage | 75 V |
| RoHS | Compliant |
| Function | Step-Up, Step-Up/Step-Down |
| Packaging | Reel |
Stock: 1
Distributors
pcbx
pcbxUnit Price$6.35645
Ext.Price$6.35645
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $6.35645 | $6.35645 |
| 10 | $6.20525 | $62.05250 |
| 25 | $6.15857 | $153.96425 |
| 50 | $6.11224 | $305.61200 |
| 100 | $6.06628 | $606.62800 |
